ELECTRAGUARD ESD EPOXY SPECIFICATIONS

Mission Critical Conductive Floor Paint

Click Here for the ElectraGuard Main Page

Click Here for this document in a PDF format.

PRODUCT HISTORY AND OVERVIEW: ElectraGuard was originally invented for use in DOD munitions applications in 1992. Over the years it has been further refined with patented advancements in structural integrity. ElectraGuard is exclusive to United SCP and a proven performer at a realistic price. ElectraGuard is a two part epoxy. Unlike mere latex or one part epoxy floor paints that may last a year or two the ElectraGuard High Gloss System provides outstanding longevity. A 10 to 15 year life expectancy is typical for this product. The system is well suited for application on a variety of substrates including concrete, existing well bonded VCT, standard and antistatic vinyl tiles and sheet goods, standard and antistatic thick set epoxy and more.

The ElectraGuard High Gloss ESD Floor Paint System meets or exceeds the latest most stringent standards of electrical conductivity. Leave "as is" for low glare matt finish and conductivity that meets the most recent DOD 4145.26-M, May 13, 2008 standards or top coat with ElectraGlaze for a diamond like shine and ultimate wear resistance that easily meets the recent ANSI ESD S 20.20-2007 standards.

PHYSICAL PROPERTIES:

Gloss Unsealed: Matte Finish

Gloss Sealed: 88 Min ASTM D1455-82

Colors: Light Gray, Medium Gray, Beige, Emerald Green, Sky Blue

pH: 4 to 5

Hardness: 30 Sward

Viscosity: 400 to 600

Solvent: Alcohol, water-glycol ether

Flash point: >212 deg. F

Freeze / Thaw Stability: 0 - Do not freeze

Dry time at standard air flow: 8 hours (dry to the touch). Open for traffic in 12

Coverage: 350 to 600 square feet per gallon per coat

Compressive strength over vinyl tiles: Modified ASTM F 9700-00, >2,500

Compressive strength over concrete: DIN1691 equal to or greater than that of the concrete.

Indentation impact resistance per ASTM F1914: DIN EN average of <5%, max 10%

Abrasion resistance per ASTM D1044: SC10F wheel, 550 gm weight, cycles 10k, % loss 1.6

Resistance to wear: DIN EN660-1, M

Film thickness when dry: 1.1 mil per coat

Warranty: Life time electrical properties, 5 years wear (see details for specifics)

Resistance to chemicals: ASTM 925, DIN EN 423, slight change

Resistance to heat: ASTM 1514 ∆<8 average., max, <∆E=2.0

Resistance to light: ASTM 1515 ∆<8 average., max, <∆E=6.0

Fire resistance: DIN 4102, B1

Color fastness: ISO 105 BO2, >6

Critical radiant flux: ASTM E648, NFPA 253, >1.08 w/cm2 (class 1 interior floor finish, NFPA code 101

Shelf Life: 24 months, unopened at 70 deg F, +/- 10 degrees.

Shipping: May be shipped Air Freight. Non Regulated, IEN 99-3A-3B, HTC 3209.90.0000



ELECTRICAL PROPERTIES

ITEM

Standard test Method

ASTM Spec

Unsealed ElectraGuard

ELECTRICAL / ELECTROSTATIC PROPERTIES

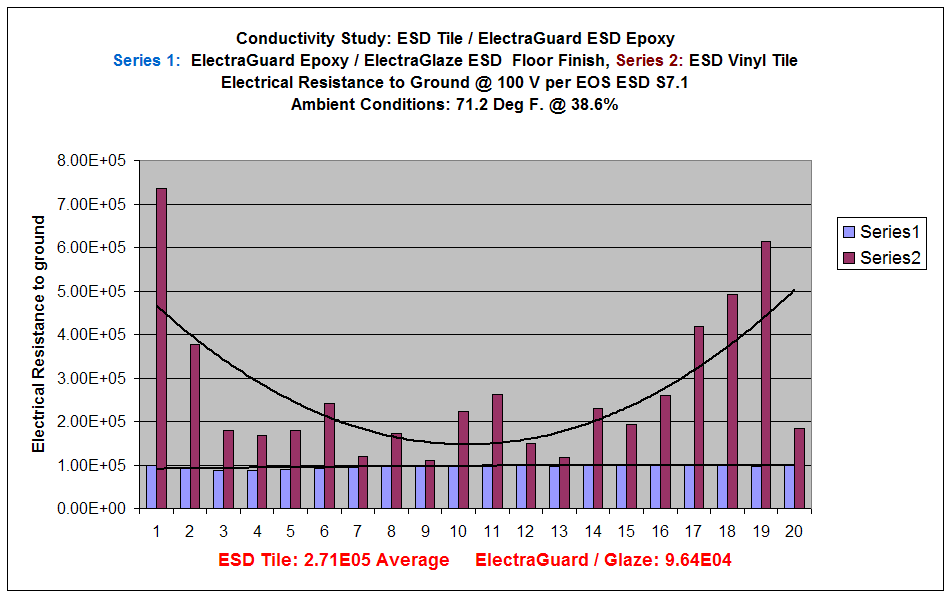

Electrical Resistance
-Surface to Surface

-Surface to Ground

ESD S 7.1 (100V / 10V)
ASTM F-150 (100V / 10V)
NFPA 99 (500V)
DIN 51953 (500V)

>2.5 X 104~<106Ω

2.5 X 104~106

>2.5 X 104

>2.5 X 104 ~ <9.8 X 105 Ω

Electrostatic Propensity
(=Static Generation)

AATCC 134 With heel grounders

-

<50 volts

Static Decay

Federal Test Method 101B Method 4046 at 15% Relative Humidity

< 0.5 sec



<0.01 sec


Combination resistance of technician, heel grounders and flooring ANSI ESD S20.20-2007 97.1

<3.5E07 Ohms. PASS
Tribogeneration ANSI ESD S20.20-2007, 97.2

<100 Volts. PASS





Typical Electrical Properties as Tested By United SCP

Tribocharge generation per ANSI ESD S20.20-2007, 97.2. Results: <25 volts





Combination Resistance per ANSI ESD S20.20-2007, 97.1. Results: 3.63E06 Ohms



PN: EG-1, EG-CASE, EG-5, ElectraGuard ESD Epoxy Floor Paint



United Static Control Products Inc

Approved: SRC



DOCUMENT NUMBER

SRC10109B



DATE:

OCTOBER 2011
